Series 7660

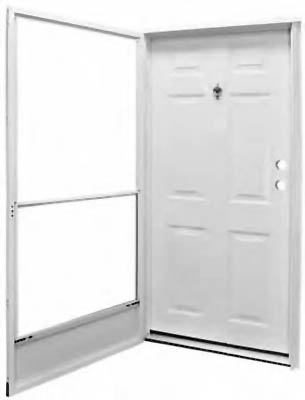

6 Panel House Type Steel Door
A totally efficient thermal entrance system. Completely pre-hung and ready to install, the 7660 includes a 25 gauge steel inner door and an energy efficient storm door.
Standard Features
• 25 gauge steel door core.
• Stainless steel lock system.
• Core is edged bored/capped for easy
addition of dead bolt.
• Prefinished white jamb system.
• Thermally broken threshold.
• Metal blind stop with
Q-Lon weatherstrip on 3 sides.
• Four leaf sill sweep.
• Lockside metal blind stop and integral
sealing system.
• Heavy duty aluminum framed storm
door with stainless steel bushings in
the hinges.
• Knocker/viewer standard (except oval).
• Manufactured to comply with-HUD Std.
Kinro 7660 *6 Panel House Type Steel Door |
||||
|---|---|---|---|---|
| Size W x H | Opening Direction |
Storm Type | Jam Size | Part # |
| 32" x 76" | LH | All Glass | 4" | 69K23276L0WA0 |
| Conventional | 4" | 69K23276L0WC0 | ||
| RH | All Glass | 4" | 69K23276R0WA0 | |
| Conventional | 4" | 69K23276R0WC0 | ||
| 34" x 76" | LH | All Glass | 4" | 69K23476L0WA0 |
| Conventional | 4" | 69K23476L0WC0 | ||
| Full View | 4" | 69K23476L0WF0 | ||
| RH | All Glass | 4" | 69K23476R0WA0 | |
| Conventional | 4" | 69K23476R0WC0 | ||
| Full View | 4" | 69K23476R0WF0 | ||
| 34" x 78" | LH | Conventional | 4" | 69K23478L0WC0 |
| RH | Conventional | 4" | 69K23478R0WC0 | |
| 34" x 80" | LH | Full View | 4" | 69K23480L0WF0 |
| RH | Full View | 4" | 69K23480R0WF0 | |
| 36" x 76" | LH | All Glass |
4" | 69K23676L0WA0 |
| RH | All Glass | 4" | 69K23676R0WA0 | |
| 36" x 80" | LH | All Glass |
4" | 69K23680L0WA0 |
| RH | All Glass | 4" | 69K23680R0WA0 | |
| 38" x 76" | LH | Conventional | 4" | 69K23876L0WC0 |
| RH | Conventional | 4" | 69K23876R0WC0 | |
| 38" x 80" | LH | Conventional | 4" | 69K23880L0WC0 |
| RH | Conventional | 4" | 69K23880R0WC0 | |
| Item | Part # |
| KINRO Touch-up White paint | 69350001 |
